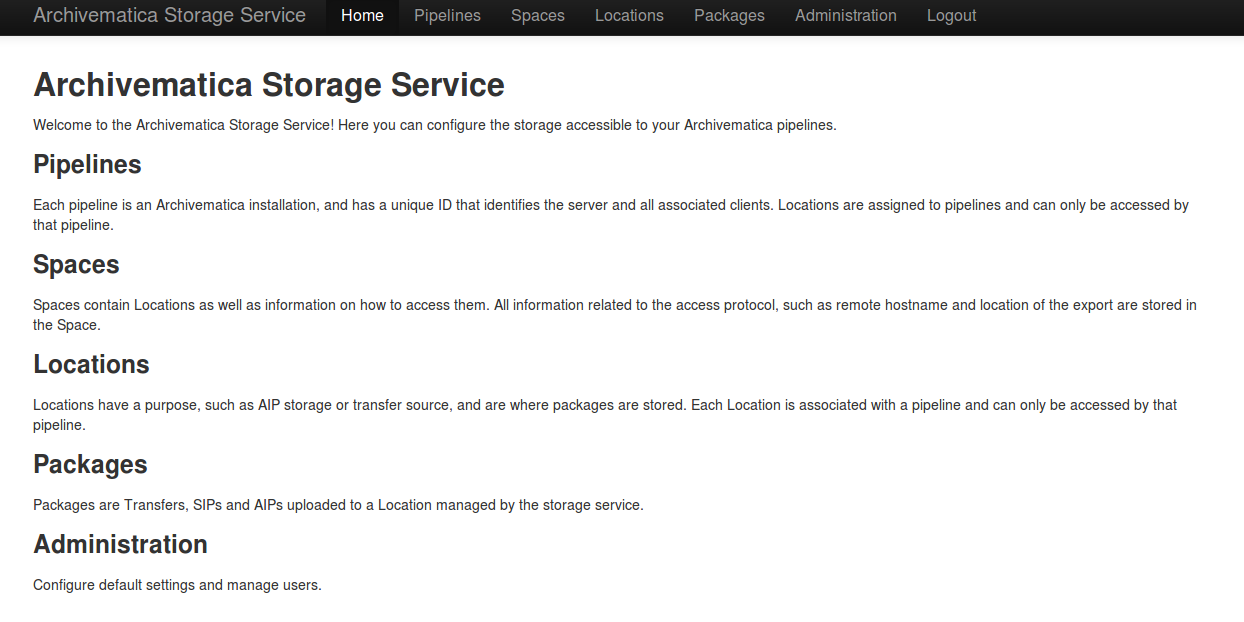

Storage service- Administrator instructions¶

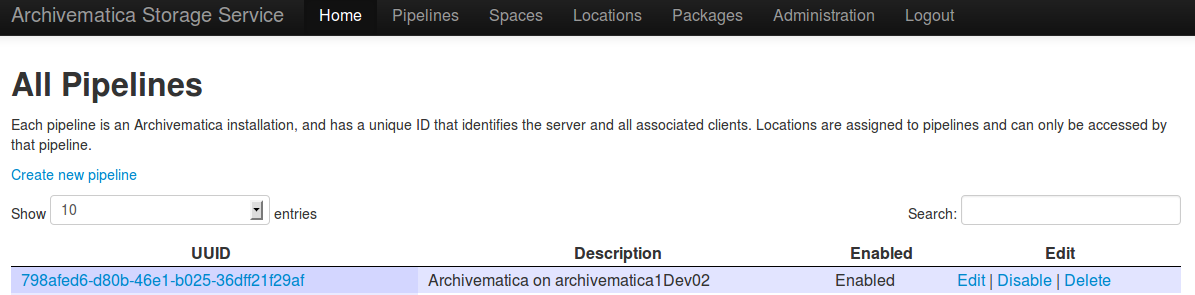

Pipelines¶

A pipeline refers to a single installation of an Archivematica dashboard. The Storage Service can be used to configure spaces and locations across multiple Archivematica pipelines.

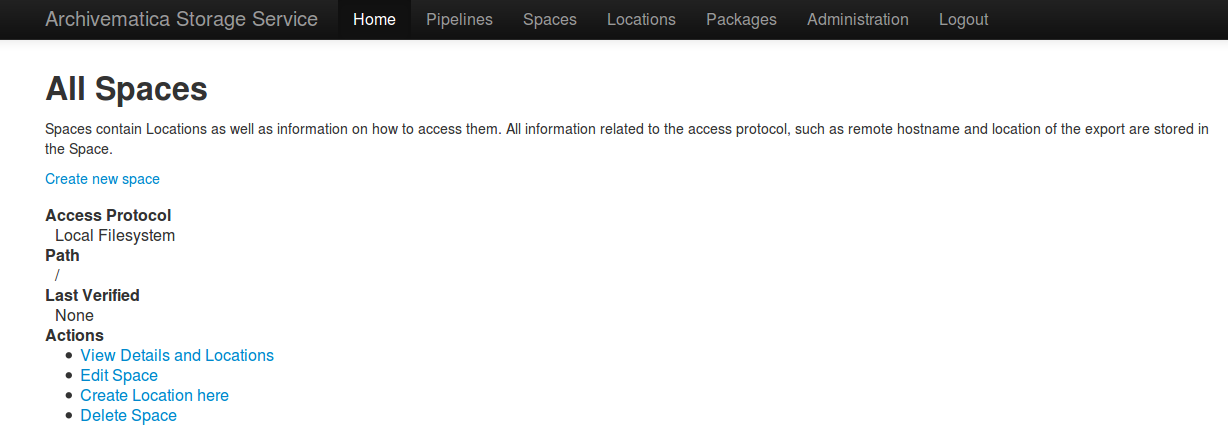

Spaces¶

A space models a specific storage device. That device might be a locally- accessible disk, a network share, or a remote system accessible via a protocol like FEDORA, SWIFT, DuraCloud, or LOCKSS. The space provides the Storage Service with configuration to read and/or write data stored within itself.

Packages are not stored directly inside a space; instead, packages are stored within locations, which are organized subdivisions of a space.

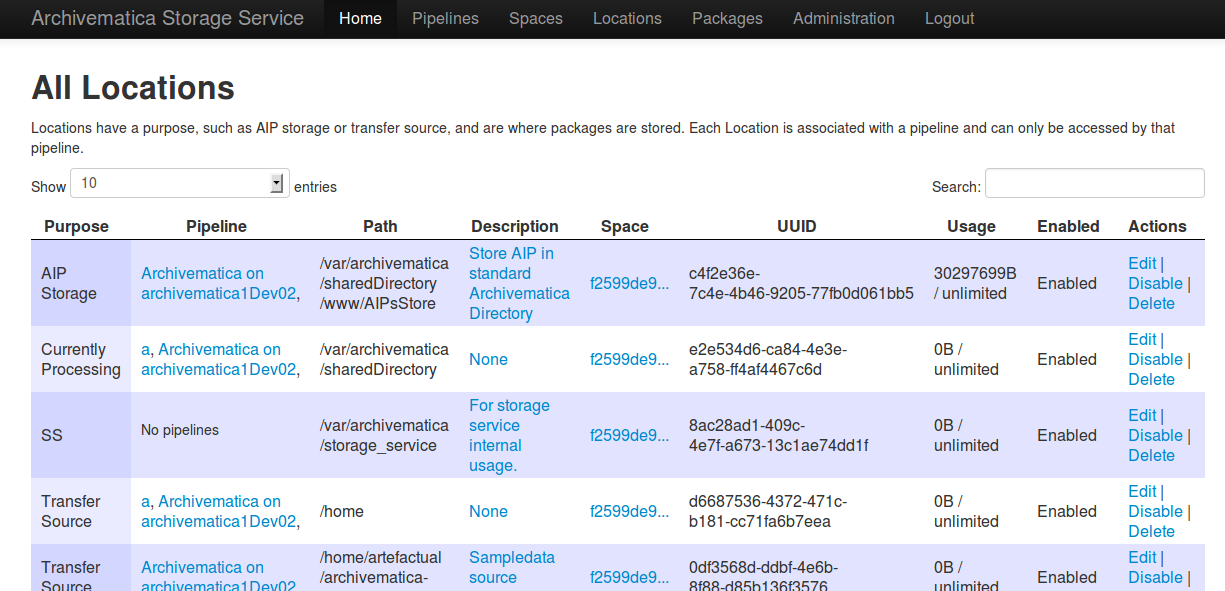

Locations¶

A location is a subdivision of a space. Each location is assigned a specific purpose, such as AIP storage, DIP storage, transfer source or transfer backlog, in order to provide an organized way to structure content within a space.

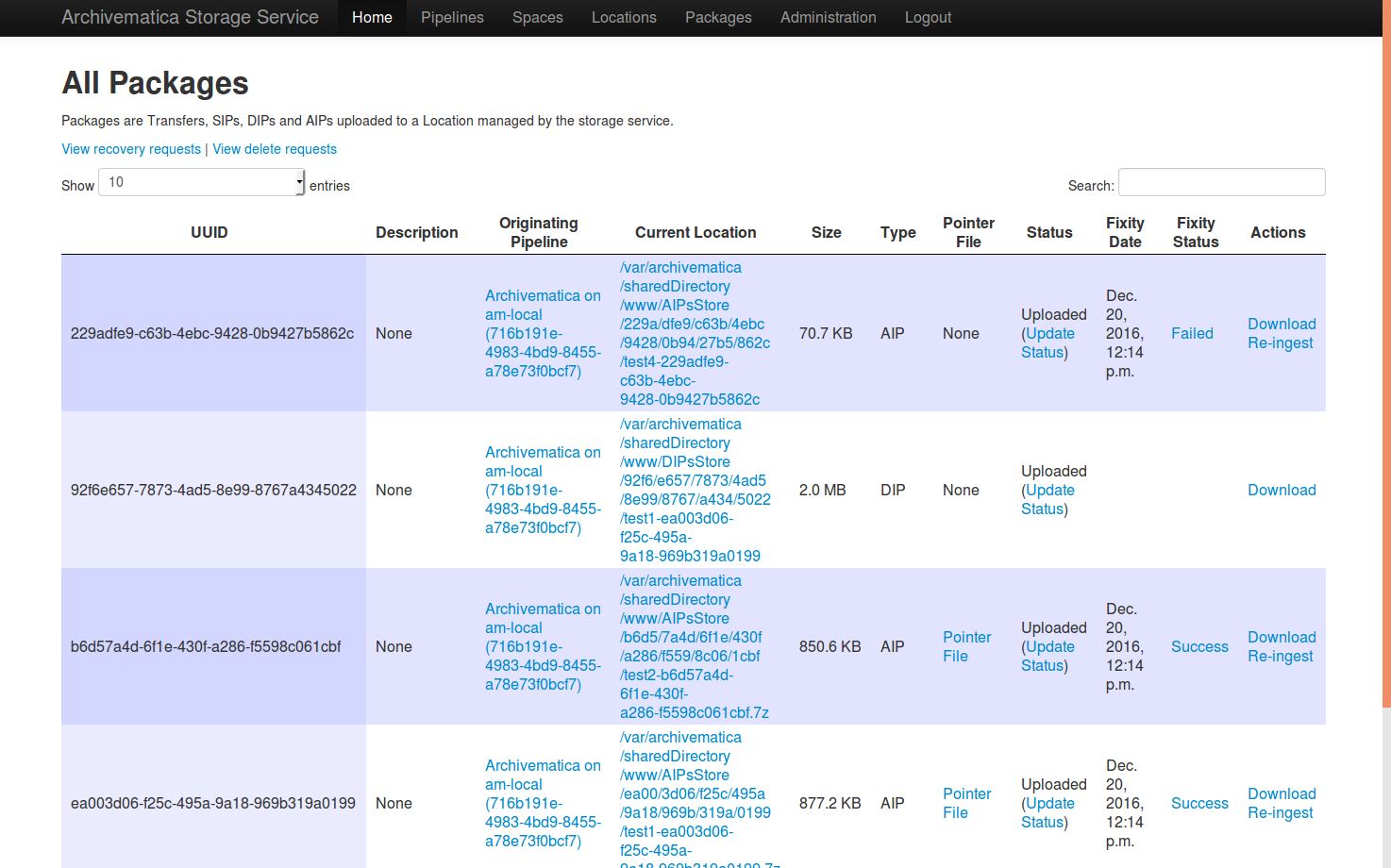

Packages¶

The Storage Service is oriented to storing packages. A “package” is a bundle of one or more files transferred from an external service; for example, a package may be an AIP, a backlogged transfer, or a DIP. Each package is stored in a location.

Change the port in the web server configuration¶

The storage services uses nginx by default, so you can edit /etc/nginx/sites-enabled/storage and change the line that says

listen 8000;

change 8000 to whatever port you prefer to use.

Keep in mind that in a default installation of Archivematica, the dashboard is running in Apache on port 80. So it is not possible to make nginx run on port 80 on the same machine. If you install the storage service on its own server, you can set it to use port 80.

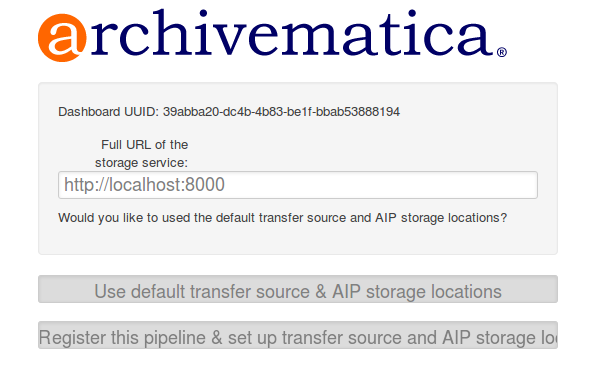

Make sure to adjust the dashboard UUID in the Archivematica dashboard under Administration -> General.

Local Filesystem¶

Local Filesystem spaces handle storage that is available locally on the machine running the storage service. Typically this is the hard drive, SSD or raid array attached to the machine, but it could also encompass remote storage that has already been mounted. For remote storage that has been locally mounted, we recommend using a more specific Space if one is available.

Fields

• Path: Absolute path to the Space on the local filesystem
• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.

NFS¶

NFS spaces are for NFS exports mounted on the Storage Service server, and the Archivematica pipeline.

Fields

• Path: Absolute path the space is mounted at on the filesystem local to the storage service
• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Remote name: Hostname or IP address of the remote computer exporting the NFS mount.
• Remote path: Export path on the NFS server
• Version: nfs or nfs4 - as would be passed to the mount command.
• Manually Mounted: Check this if it has been mounted already. Otherwise, the Storage Service will try to mount it. Note: this feature is not yet available.

Pipeline Local Filesystem¶

Pipeline Local Filesystems refer to the storage that is local to the Archivematica pipeline, but remote to the storage service. For this Space to work properly, passwordless SSH must be set up between the Storage Service host and the Archivematica host.

For example, the storage service is hosted on storage_service_host and Archivematica is running on archivematica1 . The transfer sources for Archivematica are stored locally on archivematica1, but the storage service needs access to them. The Space for that transfer source would be a Pipeline Local Filesystem.

Fields

• Path: Absolute path to the space on the remote machine.
• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Remote name: Hostname or IP address of the computer running Archivematica. Should be SSH accessible from the Storage Service computer.
• Remote user: Username on the remote host

GPG encryption on local file system¶

Creating a GPG encryption space will allow users to create encrypted AIPs and transfers. Only AIP storage, Transfer backlog and Replicator locations can be created in a GPG encryption space.

Encrypted AIPs and transfers can be downloaded unencrypted via the Storage Service and Archivematica dashboard.

Before creating a GPG encryption space ensure that you have created or imported a GPG key on the Administration page.

Fields

• Path: Absolute path to the Space on the local filesystem
• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Staging path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Key: Choose the encryption key to be used for the space.

LOCKSS¶

Archivematica can store AIPs in a LOCKSS network via LOCKSS-O-Matic, which uses SWORD to communicate between the Storage Service and a Private LOCKSS Network (PLN).

Fields:

• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path: Absolute path to the space on the remote machine.
• Staging path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Service document IRI: URL of LOCKSS-o-matic service document IRI, eg. http://lockssomatic.example.org/api/sword/2.0/sd-iri
• Content Provider ID: On-Behalf-Of value when communicating with LOCKSS-o-matic
• Externally available domain: Base URL for this server that LOCKSS will be able to access. Generally this is the URL for the home page of the Storage Service.
• Keep local copy? Check the box if you wish to store a local copy of the AIPs even after they are stored in LOCKSS.

DuraCloud¶

Archivematica can use DuraCloud as an access protocol for the Storage Service in version 0.5 and higher. Typically one Storage Service space has a one to one relationship with a space within DuraCloud.

Fields:

• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path: Absolute path to the space on the remote machine. Normally left blank for DuraCloud implementations.
• Staging path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Host: Hostname of the DuraCloud instance, e.g. example.duracloud.org
• User: Username to authenticate as
• Password: Password to authenticate with
• Duraspace: Name of the Space within DuraCloud

Arkivum¶

Archivematica can use Arkivum’s A-Stor as an access protocol in version 0.7 and higher. A-Stor can expose a CIFS share to the Storage Service so that the storage service can copy files to an A-Stor datapool for AIP storage, for example.

Add an entry to /etc/fstab on the Storage Service, then mount the A-Stor CIFS share.

Example:

//ARK00092/astor /mnt/astor cifs
defaults,guest,file_mode=0666,dir_mode=0777,uid=archivematica,gid
=archivematica,forcegid,forceuid,rw 0 1

In this example, ARK00092 is the name of the appliance and should be resolvable through DNS or be set as an entry in /etc/hosts.

Then, choosing Arkivum as the access protocol, create a new space in the Storage Service:

Fields

• Size: (Optional) Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path: local path on the Storage Service machine to the CIFS share.

Example: /mnt/astor

• Staging Path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.

Example: /mnt/astor/archivematica1/tmp

• Host: Arkivum appliance hostname or IP address with port.
• Remote user: (Optional) Username on the remote machine accessible via passwordless ssh.
• Remote name: (Optional) Name or IP of the remote machine.

Swift¶

OpenStack’s Swift is available as an access protocol in Storage Service 0.7 and higher. At this time, locations within Swift have been tested as AIP Storage, DIP Storage and Transfer Backlog. Using Swift as Transfer Source is possible, but under-tested at this time.

Fields

• Size (Optional): Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path: Absolute path to the space on the storage service machine.
• Staging Path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Auth url: URL to authenticate against
• Auth version: OpenStack auth version
• Username: Username to authenticate as (Swift username)
• Password: Password to authenticate with (Swift password)
• Container: Name of the Swift container. To list available containers in your Swift installation, run swift list from the command line.
• Tenant: The tenant/account name, required when connecting to an auth 2.0 system.
• Region (Optional): Region in Swift.

DSpace via SWORD2 API¶

DSpace locations are currently supported only for AIP Storage locations. Becasue DSpace is typically used as a public-facing system, the behaviour is different than when using other access protocols for AIP Storage: upon deposit in DSpace, the AIP will be split into an objects bitstream, which contains all original and normalized objects in the AIP, as well as a metadata bitstream, which contains all of the bag artifacts, metadata and logs that one would expect to see in an Archivematica AIP. The metadata bitstream can optionally be restricted; see below. Presently, the Storage Service and Dashboard are not capable of downloading/reconstituting the AIP- this must be done manually from the DSpace interface.

If using DSpace as the AIP location in conjunction with the ArchivesSpace workflow in the Appraisal tab, a post Store AIP hook will send the DSpace handle to the ArchivesSpace digital object record upon AIP storage.

Fields

• Size (Optional): Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path: Absolute path to the space on the storage service machine.
• Staging Path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Service Document IRI: URL of the service document. E.g. http://demo.dspace.org/swordv2/servicedocument, where servicedocument is the handle to the community or collection being used for deposit.
• User: DSpace username to authenticate as
• Password: DSpace password to authenticate with
• Restricted metadata policy: Use to restrict access to the metadata bitstream. Must be specified as a list of objects in JSON. This will override existing policies. Example: [{“action”:”READ”,”groupId”:”5”,”rpType”:”TYPE_CUSTOM”}]

Fedora via SWORD2¶

Fedora via SWORD2 is currently supported in the Storage Service as an Access Protocol to facilitate use of the Archidora plugin, which allows ingest of material from Islandora to Archivematica. This workflow is in beta testing as of Storage Service 0.9/Archivematica 1.5/Islandora 7.x-1.6.

Fields

• Size (Optional): Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path: Absolute path to the space on the storage service machine.
• Staging Path: Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Fedora user: Fedora user name (for SWORD functionality)
• Fedora password: Fedora password (for SWORD functionality)
• Fedora name: Name or IP of the remote Fedora machine

Dataverse¶

As of Storage Service version 0.9, Dataverse integration is a beta feature. It requires the use of a development branch of Archivematica (https://github.com/artefactual/archivematica/tree/dev/issue-8693-dataverse) and of the Automation Tools (https://github.com/artefactual/automation-tools/tree/dev/dataverse)

Fields

• Size (Optional): Maximum size allowed for this space. Set to 0 or leave blank for unlimited.
• Path (Optional): Absolute path to the space on the storage service machine.
• Staging Path (Optional): Absolute path to a staging area. Must be UNIX filesystem compatible, preferably on the same filesystem as the path.
• Host: Hostname or ip of the Dataverse instance, e.g. test.dataverse.org
• API key: the key generated by Dataverse for a specific user account
• Agent name: string that will be used in Archivematica METS file to identify this Dataverse instance as a PREMIS agent, e.g. My Institution’s Dataverse
• Agent type (Optional): string that will be used in Archivematica METS file to identify the type of PREMIS agent above, e.g. organization
• Agent identifier (Optional): string that will be used in Archivematica METS file to uniquely identify the PREMIS agent above.

Inside this space, at least one location should be created for the purpose of Transfer Source. This is the only type of location that will be allowed inside a Dataverse space.

Within this location, the relative path can be used to store a query string, which is used to interrogate the Dataverse Search API (for example, q=* will return all datasets).

The Storage Service will always add type=dataset to the calls that it makes to the Dataverse Search API. The automation tools will create one transfer for every dataset, which subsequently becomes one SIP and one AIP.

How to Configure a Location¶

For Spaces of the type “Local Filesystem,” Locations are basically directories (or more accurately, paths to directories). You can create Locations for Transfer Source, Currently Processing, or AIP and DIP Storage.

To create and configure a new Location:

1. In the Storage Service, click on the “Spaces” tab.
2. Under the Space that you want to add the Location to, click on the “Create Location here” link.
3. Choose a purpose (e.g. AIP Storage) and pipeline, and enter a “Relative Path” (e.g. var/mylocation) and human-readable description. The Relative Path is relative to the Path defined in the Space you are adding the Location to. For example, for the default Space, the Path is / so your Location path would be relative to that (in the example here, the complete path would end up being /var/mylocation).

Note

If the path you are defining in your Location doesn’t exist, you must create it manually and make sure it is writable by the Archivematica user.

4. If desired, for an AIP storage location choose the replicator location(s).
5. Save the Location settings.
6. The new Location will now be available as an option under the appropriate options in the Dashboard, for example as a Transfer location (which must be enabled under the Dashboard “Administration” tab) or as a destination for AIP storage.

Users¶

Only registered users can long into the storage service, and the Users page is where users can be created or modified.

The storage service has two types of users: administrative users, and regular users. The only distinction between the two types is for email notifications; administrators will be notified by email when special events occur, while regular users will not.

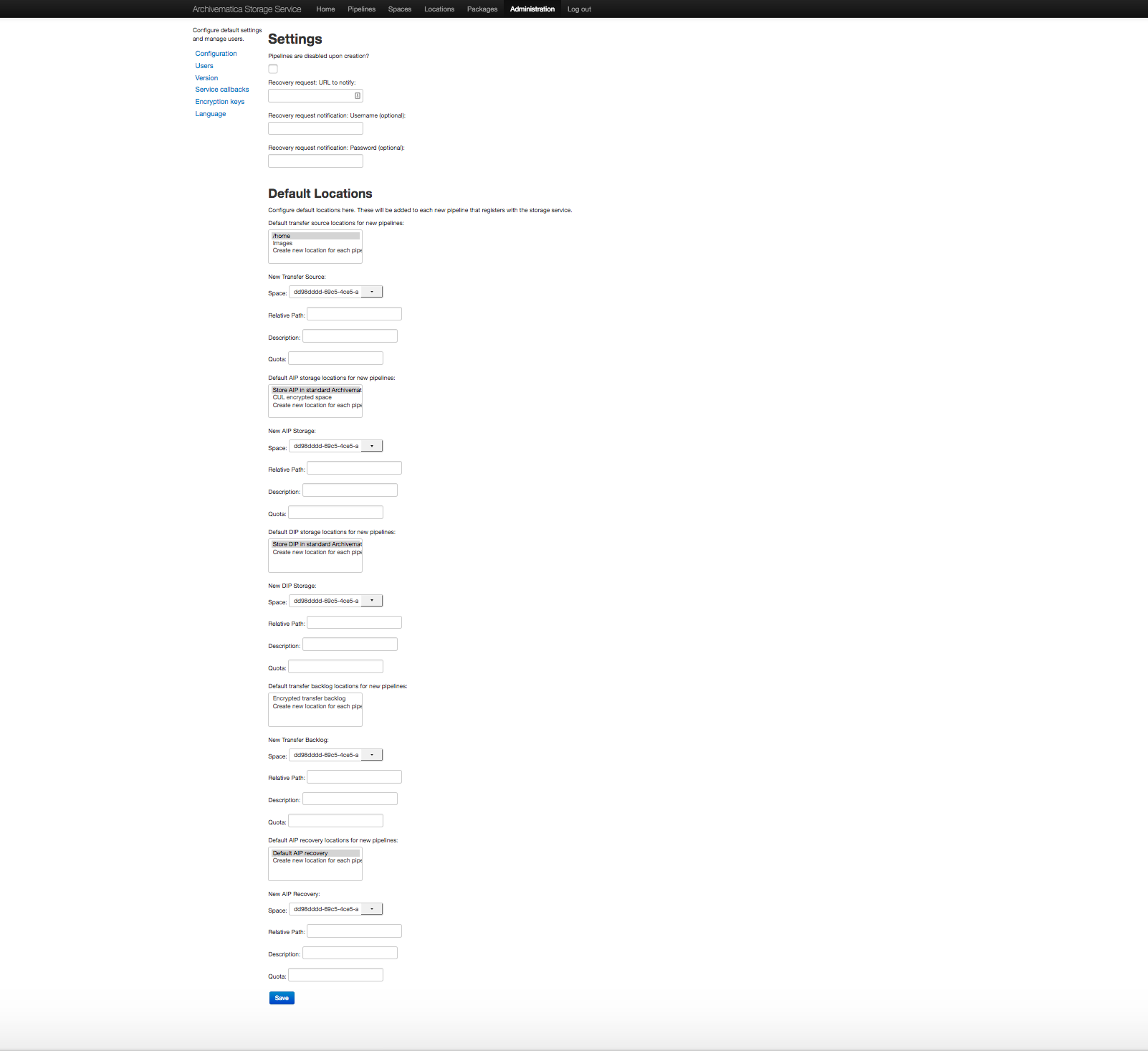

Settings¶

Settings control the behavior of the Storage Service. Default Locations are the created or associated with pipelines when they are created.

Pipelines are disabled upon creation? sets whether a newly created Pipeline can access its Locations. If a Pipeline is disabled, it cannot access any of its locations. By disabling newly created Pipelines, it provides some security against unwanted perusal of the files in Locations, or use by unauthorized Archivematica instances. This can be configured individually when creating a Pipeline manually through the Storage Service website.

Default Locations sets which existing locations should be associated with a newly created Pipeline, or which new Locations should be created for each new Pipeline. No matter what is configured here, a Currently Processing location is created for all Pipelines, since one is required. Multiple Transfer Source or AIP Storage Locations can be configured by holding down Ctrl when selecting them. New Locations in an existing Space can be created for Pipelines that use default locations by entering the relevant information.

Version¶

The version page will display the current version and specific git commit of your installation of the Storage Service.

Service Callbacks¶

Callbacks allow REST calls to be made by the Archivematica Storage Service after performing certain types of actions. This allows external services to be notified when internal actions have taken place.

A callback can be configured for the Islandora (Fedora) integration, as follows:

• URI: http://{islandora-base-url}/islandora/object/<source_id>/archidora/{Islandora API key}/delete (the Islandora API key is generated on the Archidora admin screen in Islandora)
• Event: post-store
• Method: post
• Expected status: 200

Encryption Keys¶

GPG encryption keys can be created or imported to be used in spaces to store encrypted AIPs, transfers or replicated AIPs/transfers. Keys can either be created by the Storage Service or imported.

To create a new key:

1. Click on Create New Key
2. Enter the name and email address you want associated with the key.

To import a key:

1. Click on Import Existing Key
2. Paste in your key in ASCII-armored format.

Set Language¶

Configure language settings for the Storage Service in this area of the Administration tab. Strings are available for translation on the localization platform (Transifex).
